High Quality Vertical Cutting Dryer for Waste Drilling Mud

FOB Reference Price:Get Latest Price
$50,000.00 - $103,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Brand Name:
2 Years
After-sales Service Provided:
No after-sales service
Product name:
Vertical Cutting Dryer
Treating Capacity:
Max. Daimeter of screen:
950mm / 37 3/8"
Client's Request
8400kg/18522 lbs
water contain:
less than 5%
material inners:
Stainless Steel
G force:
treating capacity:
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case or according to customer's request
Shanghai / Tianjin

High Quality Vertical Cutting Dryer For Waste Drilling Mud

Product Description

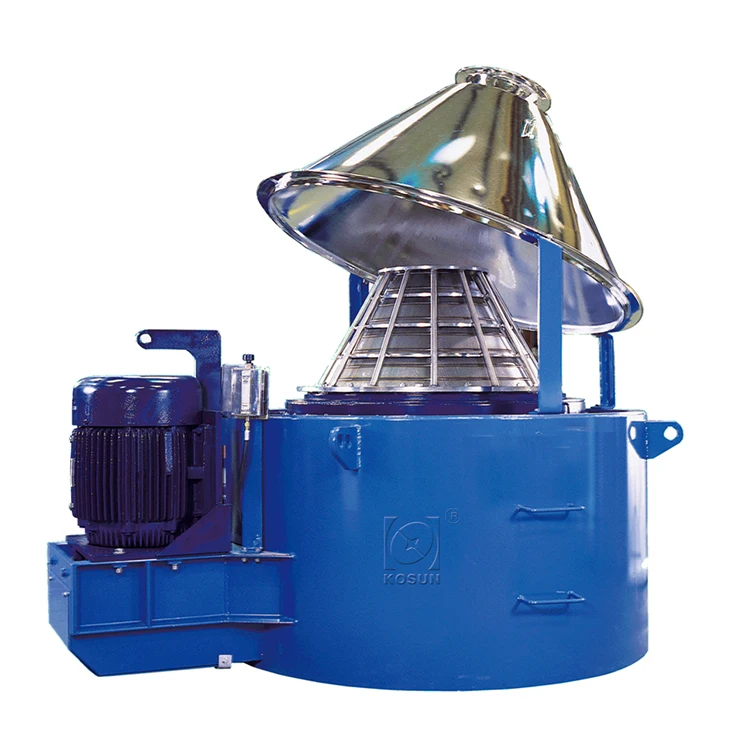

Vertical Cuttings Dryer produced by KOSUN is a type of vertical centrifuge, which can perform solid/liquid separation through centrifugal separation. The vertical cuttings dryer can effectively recover the liquid phase in drilling cuttings, making the solid phase become very dry. It is suitable for water-base mud, oil-base mud and synthetic base mud. By recovering the mud in drilling cuttings, the vertical cuttings dryer can reduce the drilling cost and cut down environmental pollution. With handling capacity of 40-60 T/h, the oil on cuttings (OOC) of drilling cuttings can be reduced to lower than 5% (w/w) after treatment, meeting the international emissions standards and environmental protection requirements. The vertical centrifuge can also be applicable for drilling waste management in onshore and offshore drilling.


Vertical Cuttings Dryer Features and Benefits:

Environmental and cost

• Highly effective liquids/solids separation minimizes fluid content of cuttings

• Reduces waste-disposal volumes

• Effective separation reclaims high percentages of fluid that can be reused in the active mud system

• Recovers whole mud lost from shale shaker failure, rig motion and screen blinding, that is cost- effective.


Operational Advantages

• Programmable Logic Controller (PLC), with automatic warning indicators, monitors temperature, torque, oil flow and operating hours

• High-capacity, continuous feed units have the throughput to keep up with drilling

• Tungsten-carbide-coated, independently adjustable flights reduce wear and ensure optimal tolerance

• Handrail and walkways is convenient for operators to do routine maintenance work, that can reduce risk to personnel

• Different kinds of screens can meet various operation requirements


Ease of Maintenance

• Normal wear parts are easily accessible from the top of the unit; belts are easily

• changed without removing gear assembly

• Interchangeable tungsten carbide flights protect rotor and gear box from excessive erosion, minimizing main component failure

• Explosion-proof motors and control panels can be certified with CE/ATEX
